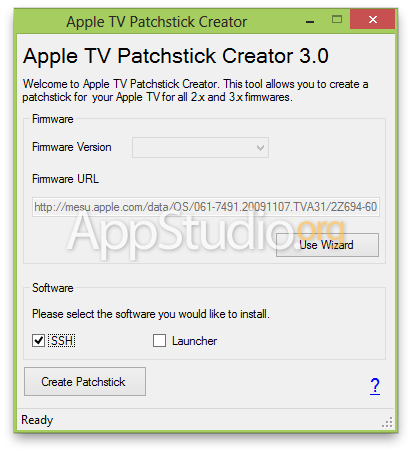

These are instructions on how to jailbreak your AppleTV using a patchstick created by atv-win on Windows. Before getting started you need will need a USB Stick which can be fully erased. Step One Create a folder called Patchstick on your desktop, download atv-win from, and place it into the folder. Double click to open the atv-win-3.0.zip archive and drag the atv-win executable into the Patchstick folder. Double click atv-win-3.0.exe to launch the application. Step Two Select the newest firmware version from the Firmware Version dropdown and select SSH from the checkboxes below. Click the Create Patchstick button to continue.
Etender
Step Three Atv-win will now ask you for a location to save a.img file. Navigate to the Patchstick folder on your desktop, input a filename of atv-patchstick.img and click the Save button.
Step Four Atv-win will download the latest AppleTV firmware build the.img file. Step Five A popup will appear informing you that your patchstick img has been created successfully. Click the OK button. Step Six When asked if you would like to run USB Image Tool now click the Yes button. Step Seven Select your USB stick from the list of devices on the left and then click the large Restore button. Step Eight Navigate to the Patchstick folder on your desktop and choose the atv-patchstick.img file we created earlier. Step Nine When asked to confirm the restore click the Yes button.
Sep 8, 2010 - Don't worry what disk format your USB flash drive is; atvusb-creator will format it accordingly. Just plug your emptied USB flash drive into your Mac's USB port. Step 1: Downloading the AppleTV Firmware File. You need to download the current AppleTV firmware version 3.0.2 file by right-clicking and saving.
Note: You will lose all previous information on the USB stick. Step Ten USB Image Tool will now create your patchstick using the img file we generated earlier. Step Eleven Once the restore is complete eject the USB Stick and connect it to your AppleTV. Step Twelve Hold down the Menu and - buttons on the AppleTV remote until it reboots.
Step Thirteen Notice the Patchstick will now do its job and install SSH on the AppleTV. Step Fourteen When complete, remove the USB Stick from the AppleTV and unplug the device. Plug it back in to reboot. Step Fifteen You can now access your AppleTV via SSH to perform a host of functions and hacks. You can find many interesting tutorials for your AppleTV.
The default username and password for your AppleTV is now frontrow and frontrow.
Hello, I monitor the Apple TV update site myself so that I am aware when an update is out and I can update the patchstick immediately. I have emailed Scott to inform him and I will look into it. If someone would like to try, please go ahead. With the Windows version you will have to download the 3.0 version, not the 2.4 version, then select Choose DMG and point the dialogue to the 3.0 image. This should work - but I am unsure of application compatibility.
Sam Original comment by Sam.Nazarko on 29 Oct 2009 at 10:14. I also created a patchstick using the v3 dmg. 1) SSH works as it should 2) The Software Menu option shows up in between TV Shows and Music 3) None of the option on Software Menu function 4) XBMC and Boxee don't show up anywhere When I type uname -a I get the following 'Darwin AppleTV.local 8.8.2 Darwin Kernel Version 8.8.2: Mon Jan 29 18:57:29 PST 2007; root:xnu-792.94.181/RELEASEI386 i386 i386' In /Users/frontrow there is a directory called Updates that contains a version.xml file. I have attached a copy of the file.
Original comment by arf.@valdosta.edu on 30 Oct 2009 at 2:50 Attachments:. Upgraded to 3.0, Created new patchstick with 3.0 dmg. Patch run smooth-no erros. Can't SSH using CODA Below the error; anyone got a clue?
OpenSSH5.2p1, OpenSSL 0.9.8k 25 Mar 2009 @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @ WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED! @ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY! Someone could be eavesdropping on you right now (man-in-the-middle attack)! It is also possible that the RSA host key has just been changed.
The fingerprint for the RSA key sent by the remote host is 5b:6c:1d:55:1d:1c:16:f4:e0:e7:a5:43:27:b8:2c:2c. Please contact your system administrator. Add correct host key in /Users/owner1/.ssh/knownhosts to get rid of this message. Offending key in /Users/owner1/.ssh/knownhosts:3 RSA host key for appletv.local has changed and you have requested strict checking. Host key verification failed. Original comment by gdeze.@hotmail.com on 31 Oct 2009 at 1:37. Thanks guys!!
Managed to roll-back to 2.4 and patched 2.4 again so everything is back. All Apps are working including boxee.
Won't get FTP working, but not sure what's the reason for that. What i did: 1) Upgrade to 3.0 2) Patch 3.0 using 067.dmg and ATVUSB 3) Delete host file in user/.ssh 3) Downgrade to 0.29dmg (v2.4), with use of OSupdate. 4) Patch 2.4 the usual way 5) Update all the software Boxee XMBC Really happy guys!! Thanks for your help especially Sam that came up with the smart plan. Original comment by gdeze.@hotmail.com on 31 Oct 2009 at 7:35. I managed to run XMBC under 3.0. After running the patchstick (created with firmware 2.4), I also lost the menu options.
I then copied via SFTP the MAC (Intel) version of XMBC. Then I mounted the dmg file via ssh, and copied the application to the correct folder. Because the application was still not accessible via the AppleTV, I adapted the boot process so that XCMB automatically starts when powering on the AppleTV. Only downside is the XCMB was reacting very slow to my remote controls (default AppleTV remote and iPhone with XBMC remote. Also the news banner in XBMC was scrolling slow and with interrupts. I will retry this, because I also adapted a url in a info.plst file for the loader, and I think that's the reason that it was so slow, before XCMB was running, but i did kept seeing the AppleTV instead of XCMB. But my iPhone was able to access the application and start MP3 albums to play, whiteout any interrupts.
After adapting the info.plst, I saw the XCMB menu, but it was slow as hell. Because I just want to be able to play my more then 2500 MP3 albums who are on my NAS, I satisfied if XCMB is running in the background whiteout any menu-interface from the XCMB. Original comment by paul.de.@gmail.com on 31 Oct 2009 at 9:17. If we're finding Launcher and everything difficult to get going I could whip up a temporary solution. It would be Windows only but it would be a script that: Here we go: 1) 'patchstick' the 3.0 ATV 2) ssh into it and download Launcher-3.2.alpha1-debug.run 3) install Launcher chmod +x Launcher.;./Launcher-3.2. 4) install XBMC with Launcher or just re-symlink your old install (ln - s /Users/frontrow/Applications/XBMC.app /Applications/XBMC.app) Basically automates what is described in the thread Davilla linked to.
It's only worthwhile if an update is far away. I doubt it is - considering with a working launcher and maybe soon a working Software Menu all that will need updating is atv-xbmc.7z and atv-xbmc-ssh.7z. Original comment by Sam.Nazarko on 31 Oct 2009 at 10:36. Okay, here is EXACTLY what you need to do to get XBMC running under the new ATV 3.0 upgrade. Unfortunately, this does NOT get Boxee, ATVFiles or any of our other beloved plugins and apps working yet but at least it gets XBMC back up and running normally with no changes to your existing XBMC setup. 1) Create a USB/'Patchstick' if you do not already have one. If you do not know how to do this then you may find instructions here (2) Unplug your ATV and once unplugged insert the USB/'Patchstick' into the USB slot of the ATV.
Plug the ATV back in and let it go through its boot sequence. 3) Once finished then unplug the ATV once again and remove your USB/'Patchstick'. Plug the ATV back in and let it reboot. 4) Once rebooted you will notice that the 'Software Menu' has been inserted between the 'TV Shows' and 'Music' menus but none of its options currently work. That is being worked on and should be back up and running soon.
5) Download 'Launcher-3.2.alpha1-debug.run' from (and store it to your hard drive temporarily. This is the revised (alpha) Launcher with the kudos going to MaestroDD. 6) SSH into your ATV via your preference (Terminal/Putty/Cyberduck/etc.) and copy the Launcher-3.2.alpha1-debug.run file from your hard drive to the /mnt/Scratch/Users/frontrow directory of your ATV. This should be the default directory that comes up. 7) Now, open your Terminal or Console program and type (or copy and paste) the following: chmod +x Launcher-3.2.alpha1-debug.run;./Launcher-3.2.alpha1-debug.run Then press Enter/Return 8) You should get the following message: Verifying archive integrity. Uncompressing Launcher 3.2.alpha1-debug. This installer must be run as root.
Please enter your password below to authorize as root. In most cases, this password is 'frontrow'. Password: 9) Enter the password, which should be 'frontrow' (without quotations) unless you have changed it and you should see this message: Removing old XBMCLauncher.frappliance Extracting XBMCLauncher.frappliance XBMCLauncher.frappliance successfully installed. Finder must be restarted in order to complete the installation. Would you like to do this now? (Y/n) 10) Type Y for yes and press Enter/Return. Your ATV should then reboot and the 'Launcher' menu now appears between the 'Movies' menu and the 'TV Shows' menu.
11) Next, scroll over to the new Launcher menu and click 'Downloads'. A menu will come up and choose the option to reinstall XBMC 9.04.1. Reinstall XBMC using this option. 12) Once that is finished you will be able to run XBMC once again and all of your previous settings should still be there and intact. Hope this helps. Original comment by brad.sta.@gmail.com on 1 Nov 2009 at 3:07.
Sorry, I forgot to complete the last post Just created a new patchstick based on the instructions / 3.0 image file: the stick created A-OK, but after uploading to the ATV, I see the software menu option, complete sub menus: 3rd party plugs/manage built in scripts/Restart Finder & Settings, but same as B4, none of the sub menus work. & I don't see anything about Boxee or XBMC eventhough I saw XBMC loading during the ATV flash. Original comment by Ray.@gmail.com on 14 Nov 2009 at 6:57.
0 Contributors
'please please please, i for some reason used patchstick.ca to patchstick my atv but want to revert back to my atv-usb-creator.' The only way I got back from the same place was to revert to factory settings, and then upgrade to 3.0.1 and then run atv-usb creator. Yes, it took a while. To revert to factory settings, hold the menu and down arrow keys until the light on the unit turns orange. You will be asked to pick a language, and then a screen with three choices, one of which is revert to factory settings (or something similar) Original comment by timcr.@gmail.com on 4 Dec 2009 at 1:56.
